Executive Overview
In the high-stakes arena of modern motion picture production, the physical demands placed on camera rigging have escalated to unprecedented levels. As directors push the boundaries of action cinematography—demanding pursuit-car sequences, complex aerial maneuvers, and high-velocity stunt work—the hardware holding multi-million-dollar camera packages must withstand extreme physical forces. Traditional rigging methods, often assembled from disparate, non-standardized components, frequently struggle to cope with the compound challenges of high-speed vibration, sudden directional shifts, and intense kinetic impacts.
To address these critical vulnerabilities, Burbank-based industry pioneer Matthews Studio Equipment (MSE) has introduced the T-Go Modular Rigging System. Designed by veteran Key Grip TJ Beatty and manufactured exclusively in the United States, the T-Go system is built around the industry-standard 5/8-inch (16mm) diameter—widely considered the backbone of grip and camera rigging.
Comprising two primary configurations—the T-Go Ball Head Kit and the T-Go 5/8-inch Kit—this system is engineered to provide a high-load, modular, and fail-safe solution for mounting cameras in environments where equipment failure is not an option. Priced at $1,049.00, the T-Go system represents a major advancement in on-set safety, engineering precision, and rigging efficiency.
Detailed Chronology: From On-Set Necessity to Burbank Production Lines
The development of the T-Go system follows a classic trajectory of cinema-industry innovation: a seasoned crew member identifies a recurring, high-risk problem on set and engineers a bespoke solution that is subsequently refined for global distribution.
The Genesis of an Idea
For more than two decades, Key Grip TJ Beatty operated at the front lines of action cinematography. On fast-paced sets involving process trailers, tracking vehicles, and aircraft, Beatty repeatedly encountered the limitations of standard grip hardware. When securing cameras to vehicle hoods, inside tight helicopter cabins, or on the frames of moving machinery, grips have historically relied on a mix of "baby" pins, cardellini clamps, custom-welded brackets, and speed rail.
While these solutions are functional, they often lack modular cohesion. Under the influence of high G-forces, engine-induced micro-vibrations, and sudden aerodynamic loads, traditional clamping systems can slip or suffer from structural fatigue. Recognizing that no unified, high-load system existed specifically for extreme-force 5/8-inch rigging, Beatty began prototyping a series of high-strength, interconnected components designed to lock together with absolute mechanical rigidity.
[On-Set Field Testing & Prototyping]
│
▼
[Refining High-Load Tolerances]
│
▼
[Partnership with Matthews Studio Equipment (Burbank, CA)]
│
▼
[Industrial CNC Machining & Hard-Anodized Finishing]
│
▼
[Global Commercial Release: T-Go Ball Head & 5/8" Kits]Partnering with Matthews Studio Equipment
To transition these prototypes from handmade custom tools to a commercially viable, safety-certified product line, Beatty partnered with Matthews Studio Equipment. Based in Burbank, California, MSE has spent over fifty years manufacturing grip, lighting, and camera support equipment.
MSE’s engineering team subjected Beatty’s designs to rigorous stress testing, optimizing the metallurgical properties and machining tolerances of each component. By utilizing advanced Computer Numerical Control (CNC) milling processes, MSE was able to manufacture the components to ultra-tight tolerances, ensuring that every joint, pass-through, and clamping surface delivers maximum friction and load distribution. The resulting production-ready kits are now manufactured entirely at Matthews’ Southern California facility, ensuring strict quality control and adherence to structural safety standards.
Supporting Context & Metrics: Deconstructing the T-Go Architecture
To appreciate the engineering behind the T-Go system, one must understand the physics of camera rigging. When a camera is mounted to a vehicle traveling at 60 mph, it is subjected not only to the static weight of the camera package but also to dynamic loads. Potholes, wind resistance, and sharp turns generate transient forces that can instantly multiply the effective weight of a camera rig by a factor of three or four.
The T-Go system mitigates these risks through two specialized kits designed to work independently or in tandem.

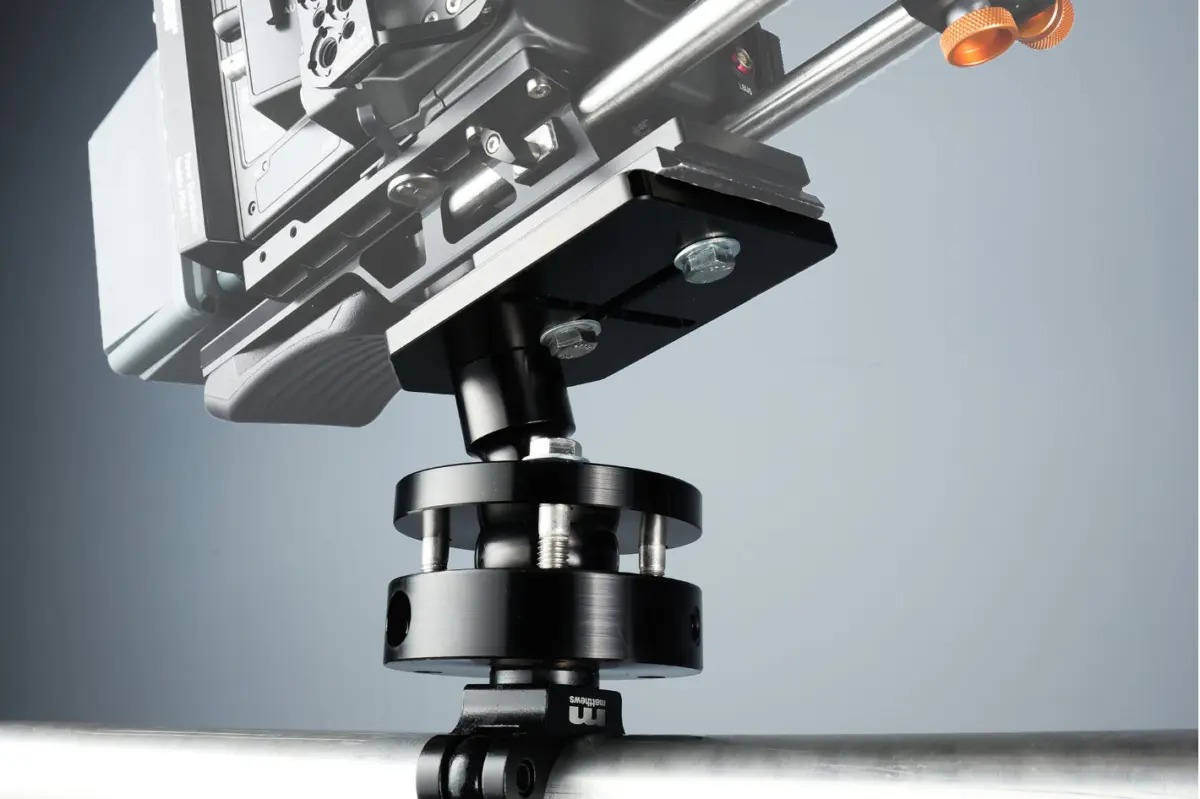

The T-Go Ball Head Kit: The High-Load 3-in-1 Anchor
The T-Go Ball Head Kit is an exceptionally strong, multi-functional mounting system designed to serve as the structural anchor of a camera rig. Rather than relying on standard ball heads that can slip under heavy payloads, the T-Go Ball Head Assembly utilizes high-friction interfaces and robust locking mechanisms to prevent rotational drift.
| Component | Primary Function | Mounting Interface |
|---|---|---|
| Ball Head Assembly | Provides fluid leveling and secure locking under heavy camera payloads. | Integrated 5/8" and Junior receiver options. |
| Junior Pin Bracket | Adapts the assembly for heavy-duty support stands and high-load rigging points. | 1-1/8" (Junior) standard pin. |
| Grid Clamp | Allows direct, high-torque attachment to standard speed rail or truss systems. | 1-1/2" to 2" OD pipe compatibility. |
This 3-in-1 modular design allows grips to rapidly transition a camera rig from a Combo Stand on a stage floor to a speed rail grid on a tracking vehicle, maintaining structural integrity across all configurations.
The T-Go 5/8-inch Kit: The Modular Framework
Built entirely around the universal 5/8-inch pin system, this kit provides the building blocks required to construct space-frame structures around tight or irregular geometries, such as car interiors, motorcycle frames, or roller coaster cars.
[T-Go Cross] ◄── Orthogonal expansion in multiple axes
│
├── [Double Barrel] ◄── Parallel reinforcement / inline expansion
│
└── [Low-Profile Corners] ◄── Three-axis pass-through junctions- Low-Profile Corners (x4): These specialized corner blocks feature three distinct pass-throughs designed to accept any length of 5/8-inch rod. By allowing the rods to pass completely through the block rather than bottoming out, grips can adjust the dimensions of a rig on the fly without changing out hardware.
- The Double Barrel: This component provides two parallel pass-throughs. It is used to run dual-rod configurations, which significantly increases resistance to torsional twist and bending moments.
- The T-Go Cross: Featuring orthogonally oriented pass-throughs, the Cross allows grips to build structural bracing outward in multiple directions simultaneously, creating incredibly rigid space frames.
- Rod Selection: The kit includes precision-ground 5/8-inch aluminum rods in six carefully selected lengths, enabling precise adaptation to confined spaces.
Materials Science and Surface Engineering
To withstand the corrosive environments of outdoor filming—including salt spray, humidity, and extreme heat—all T-Go components are finished with a hard grey anodized coating.
Unlike standard decorative anodizing, hard-coat anodizing (MIL-A-8625 Type III) significantly increases surface hardness, wear resistance, and corrosion protection. This finish also provides a non-reflective matte grey surface, preventing unwanted light reflections from bouncing back into the camera lens during high-contrast outdoor shoots.
Official Statements: The Philosophy of On-Set Safety
The development of the T-Go system is underpinned by a strict philosophy of risk mitigation. In professional cinematography, a rigging failure is not merely a financial disaster involving destroyed camera sensors and anamorphic lenses; it represents a severe safety hazard to crew members, stunt performers, and the public.
Reflecting on the real-world conditions that drove the creation of this system, inventor and Key Grip TJ Beatty emphasized the uncompromising nature of high-speed rigging:
"When you’re rigging on a process trailer at speed or mounting to an aircraft, you must know the camera isn’t going anywhere. I built T-Go because I needed it, and it didn’t exist. Traditional methods required too many compromises, and in high-action environments, compromises lead to failures. This system gives grips the absolute confidence that their rig will hold, no matter the G-forces or vibrations involved."
Matthews Studio Equipment has positioned the T-Go system as a vital addition to their professional-grade catalog. Company representatives noted that the modular design of the T-Go kits eliminates the need for "jerry-rigged" or improvised solutions on set:
"Rather than jerry-rigging imperfect solutions, this modular system provides grips with a Ball Head Assembly, Jr Pin Bracket, and Grid Clamp set up—each enabling rapid, strong, and reliable rigging configurations on a Combo Stand, 5/8-inch rail, or other grip equipment. By manufacturing these kits in our Burbank facility, we can guarantee the metallurgical integrity and precision machining required for high-load, high-risk production environments."
Future Outlook: Elevating Rigging Standards in Modern Cinema
The release of the Matthews T-Go system arrives at a transitional moment for cinematic camera packages. While modern digital cinema cameras—such as the ARRI Alexa Mini LF, RED V-Raptor, and Sony Venice Rialto system—have become smaller and lighter, the complexity of their movement has increased. The rise of specialized camera cars, remote gimbal heads, and automated pursuit arms means that cameras are being swung through space at higher velocities and with sharper changes of direction than ever before.
Driving Efficiency and Safety Standards
In an industry where time on set is measured in thousands of dollars per minute, the modular efficiency of the T-Go system offers a distinct operational advantage. By utilizing standardized, pass-through components that lock down securely with minimal effort, grip crews can build, adjust, and tear down complex camera rigs in a fraction of the time required by traditional methods.
Furthermore, as insurance regulations and union safety guidelines on film sets become increasingly stringent, the demand for certified, engineered rigging solutions is expected to rise. Improvised rigging hardware is rapidly becoming a liability that production safety supervisors are unwilling to accept. The introduction of engineered, factory-tested systems like the T-Go establishes a new benchmark for structural safety on set.
Availability
The T-Go Ball Head and 5/8-inch Kits are now shipping and available through Matthews Studio Equipment’s global network of authorized dealers. With its blend of field-tested utility, precise Burbank manufacturing, and uncompromising structural strength, the T-Go system is poised to become an indispensable asset for rigging grips, key grips, and action unit directors worldwide.
